Collect Data#

This tutorial records data of the Maxxum, its implements and the Polaris in all formats of ACRES. It covers the session log, the sensor episodes, the episode log and a ROS 2 bag.

Before You Start#

Build the packaged game. Refer to Build the Game.
Do First Recorded Dataset. It shows how to read an image and a point cloud.
Use a Python environment with numpy and mcap, for example the conda environment torchenv.
Build the ROS 2 workspace if you record a bag. Refer to Build the ROS 2 Workspace.
Keep 3 GB of the disk free for all sessions of this page.
Do the commands in the repository root. Give absolute paths to the game.

The Kinds of Recording#

ACRES has four kinds of recording. One session can write all of them at the same time.

The four kinds of recording with their sources, rates and files. The dashed line is the render-later loop. Open the diagram

Recording	Start	Content	Files
Session log	`-SessionLog`, or a menu session	The state of each vehicle at 120 Hz: pose, speed, engine, wheels, implement, soil, fuel.	`tractor.csv`, `session-summary.json`, `dbw.csv`
Sensor episodes	`-SensorRecord`, or the key `F6`	The outputs of the sensor models: camera, LiDAR, GNSS, IMU, CAN, INS. Also the true state and the controls.	`sensors/episode-NNN/`
Episode log	`-EpisodeLog=`, or the request `record`	The states of all agents at 120 Hz, the farm events and the conditions. No images.	One MCAP file
ROS 2 bag	`ros2 bag record`	The topics of the ROS 2 bridge.	One bag folder with an MCAP file

A menu session of the modes New Simulation and Replay Simulation writes the session log always. It also records the sensors that are on in the tab Sensors. The mode Pilot writes no logs.

Record the Maxxum with an Implement#

This session records the session log, the sensor episodes and the episode log of the Maxxum. The Maxxum pulls the chisel plow on field F29. A drive script drives it, thus the session runs unattended.

Write the drive script into the file plow.json.

{
  "frame": "world",
  "path": [[190.5, -35.05], [150, -35.2], [100, -35.2], [76, -35.2], [68, -36.5], [63, -40],
           [61, -45], [60.5, -52], [60.5, -140]],
  "keys": [
    {"t": 0, "gear": 11, "speed_kmh": 0, "raise": true, "hitch_mode": "draft", "draft_setpoint_kn": 22},
    {"t": 1.5, "speed_kmh": 16},
    {"t": 26, "speed_kmh": 8, "gear": 8},
    {"t": 38, "raise": false},
    {"t": 60, "exit": true}
  ]
}

Start the session.

Packaged/Linux/Acres.sh -VehicleDemo -RenderOffscreen -Implement=chisel_plow \
  -VehicleSpawnU=625 -VehicleSpawnV=477 -VehicleSpawnYaw=180 -DriveScript="$PWD/plow.json" \
  -FarmInitialTheta=0.8 -EnvHour=10 \
  -SessionLog -SensorRecord -EpisodeLog="$PWD/out/maxxum-plow/episode.mcap" \
  -VehicleOutput="$PWD/out/maxxum-plow"

Expected Result

The game stops after the drive script ends at 60 s. The log contains these lines.

ACRES_IMPLEMENT_READY id=chisel_plow keys=67 mass_kg=1100.0 com_m=(-1.347, 0.000, 1.066) width_m=2.70 ...
ACRES_SENSOR_START episode=/home/user/ACRES/out/maxxum-plow/sensors/episode-001 camera=1 lidar=8x180 gpu_lidar=1 ...
ACRES_EPISODE_LOG_START /home/user/ACRES/out/maxxum-plow/episode.mcap
ACRES_DRIVE_SCRIPT_DONE t=60.00
ACRES_EPISODE_LOG_STOP /home/user/ACRES/out/maxxum-plow/episode.mcap messages=15450
ACRES_SENSOR_STOP episode=/home/user/ACRES/out/maxxum-plow/sensors/episode-001 truth=7203 imu=7201 gnss=601 lidar=597 camera=594 can=2402 ins=0 lidar_points=804080 dropped_rows=0 camera_missed=6 camera_busy=0 lidar_busy=4 errors=0

List the session folder.

ls out/maxxum-plow

Expected Result

episode.mcap      farm-field.bin   farm-visuals.json  farm-weather.csv      theta.f32
farm-config.json  farm-fields.csv  farm-water.bin     sensors               tractor.csv
farm-events.csv   farm-state.json  farm-water.json    session-summary.json  water-depth.f32

The session folder of this run uses 604 MB. The camera images use most of this space.

Option	Function
`-Implement=chisel_plow`	Attaches the chisel plow. Attach and Operate Implements lists the eight implements.
`-FarmInitialTheta=0.8`	Sets the start water content of the soil: 0 is the wilting point, 1 is the field capacity.
`-EnvHour=10`	Sets the local start time to 10:00.
`-SessionLog`	Writes the session log.
`-SensorRecord`	Records the sensor episodes.
`-EpisodeLog=`	Writes the episode log from the first physics step.
`-VehicleOutput=`	Sets the session folder.

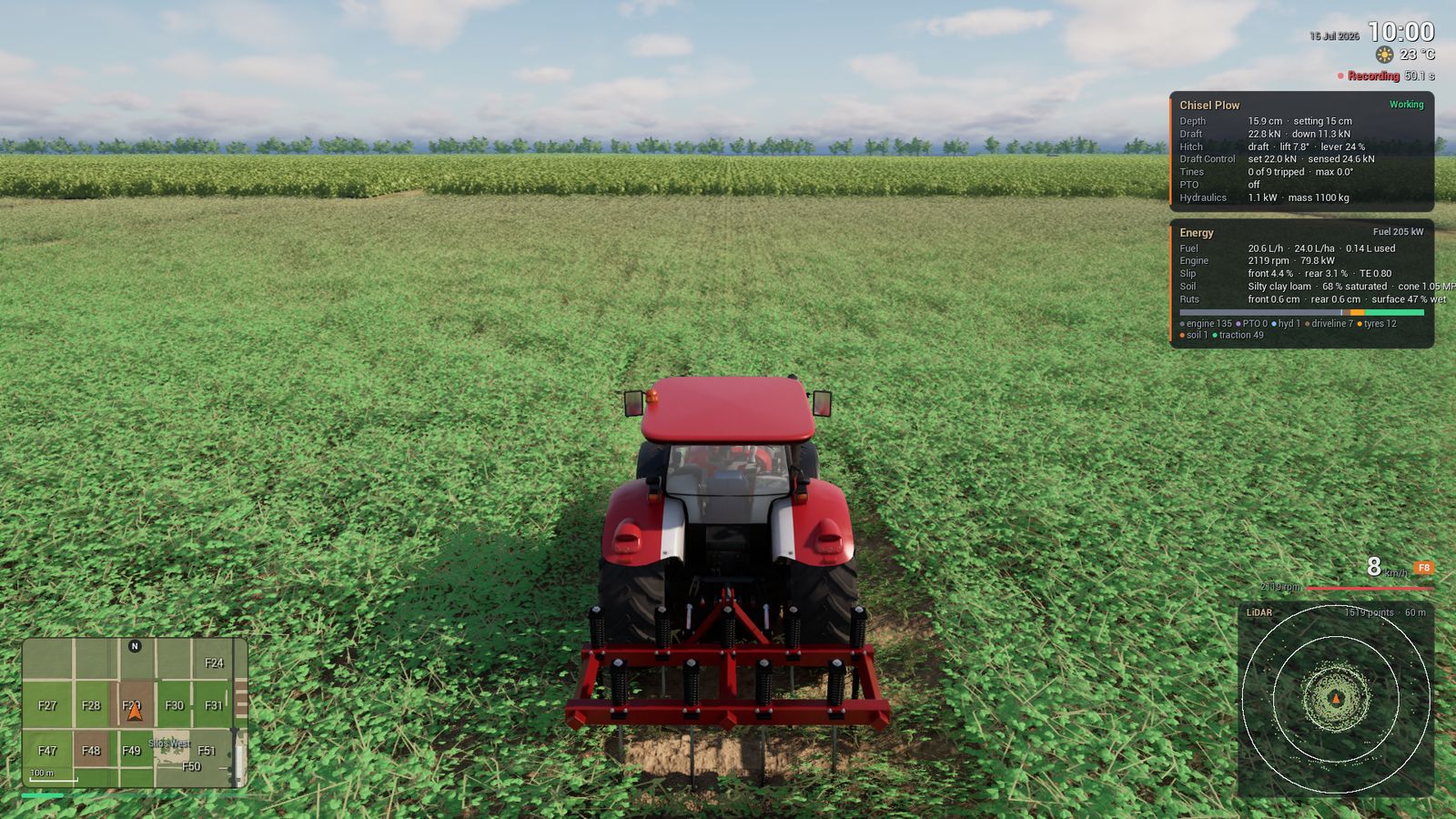

The Maxxum with the chisel plow during the recording

Read the Session Log#

The session log has one row for each physics step of the vehicle.

Write this program into the file read_log.py.

import csv

with open("out/maxxum-plow/tractor.csv", newline="") as f:
    rows = list(csv.DictReader(f))
print(len(rows), "rows,", len(rows[0]), "columns")
row = rows[6000]  # the row at 50 s
for key in ("time_s", "speed_mps", "gear", "rpm", "fuel_lph", "implement", "implement_depth_m",
            "sensed_draft_n", "hitch_mode", "soil_class", "rl_slip"):
    print(f"{key:18} {row[key]}")

Run the program.

python read_log.py

Expected Result

7203 rows, 153 columns
time_s             50.008336
speed_mps          2.1635
gear               8
rpm                2117.8
fuel_lph           20.236
implement          chisel_plow
implement_depth_m  0.1583
sensed_draft_n     24364.5
hitch_mode         1
soil_class         silty_clay_loam
rl_slip            0.0314

File	Content
`tractor.csv`	120 rows for each second. The columns give the pose, the motion, the engine, the controls, the four wheels, the energy flows, the implement and the soil.
`session-summary.json`	The totals of the session: rows, time, distance, fuel, maximum slip and maximum sinkage.
`dbw.csv`	Only for the Polaris: the drive-by-wire reports at 50 Hz.
`farm-*`, `theta.f32`, `water-depth.f32`	The state of the farm at the end of the session.

Session Log describes each column.

Read the Sensor Episodes#

The sensor recorder writes one folder for each episode: sensors/episode-001, sensors/episode-002. An episode has one file for each stream.

Stream	File	Default Rate	Content	Option to Set It Off
Camera	`camera/front_<microseconds>.png`, `camera.jsonl`	10 Hz	Images of 896 x 512 pixels with the lens and sensor model.	`-SensorNoCamera`
LiDAR	`lidar/scan_<microseconds>.ply` or `.pcd`, `lidar.jsonl`	10 Hz	Point clouds with intensity, ring, class and return number.	`-SensorNoLidar`
GNSS	`gnss.jsonl`	10 Hz	The fix with its type, its errors and the satellite counts.	`-SensorNoGnss`
IMU	`imu.jsonl`	120 Hz	The specific force and the angular velocity in the body frame.	`-SensorNoImu`
CAN	`can.jsonl`	20 Hz	The J1939 frames of the Maxxum: one feedback frame and one command frame in each cycle.	`-SensorNoCan`
INS	`ins.jsonl`	100 Hz	Only for the Polaris: the fix, the velocity and the UTM odometry.	`-SensorNoIns`
Truth	`truth.jsonl`	120 Hz	The true pose, velocity and wheel states.
Actions	`actions.jsonl`	120 Hz	The controls of each physics step.

The file episode.json is the manifest of the episode. It gives the calibration, the sensor parameters, the counts and the drop counters. The file sensors-config.json is the sensor configuration of the episode.

These options change the recording. Sensors and Rigs gives the full procedure.

Option	Function
`-SensorCameraHz=`, `-SensorLidarHz=`, `-SensorGnssHz=`, `-SensorImuHz=`	Set the rate of a sensor in Hz.
`-SensorCameraWidth=`, `-SensorCameraHeight=`	Set the size of the camera image in pixels.
`-SensorCameraIdeal`	Records camera images without distortion, noise and rolling shutter.
`-SensorNoNoise`	Sets the noise of all sensors to zero.
`-SensorSeed=`	Sets the seed of the sensor noise. The same seed gives the same noise.
`-SensorOutput=`	Sets the folder of the episodes. The default is the folder `sensors` of the session folder.
`-SensorConfig=`	Uses a different sensor configuration file.

Start and Stop an Episode with the Key#

Start a session with a window, with or without -SensorRecord.

Packaged/Linux/Acres.sh -VehicleDemo -SessionLog -VehicleOutput="$PWD/out/manual"

Push F6 to start an episode. The HUD shows the line Recording with the time of the episode.
Drive the part that you want to record.
Push F6 to stop the episode. The recorder writes the remaining files and episode.json.
Push F6 again to start the next episode. It goes into the next folder, for example episode-002.

Examine an Episode#

Read the keys state, counts and dropped of episode.json after each recording.

python -c "import json; j = json.load(open('out/maxxum-plow/sensors/episode-001/episode.json')); print(j['state'], j['sensor_profile'], j['dropped'])"

Expected Result

complete tractor-default {'rows_queue_overflow': 0, 'lidar_busy': 4, 'camera_missed': 6, 'camera_busy': 0, 'camera_encode_backlog': 0}

State	Meaning
`complete`	The recorder closed the episode without errors.
`complete_with_errors`	The recorder closed the episode. The key `errors` lists the problems, for example a LiDAR scan that was not complete at the stop.
`recording`	The episode did not close. The counts in the file are zero, but the rows and the images are on the disk.

Drop Counter	Meaning
`rows_queue_overflow`	The writer had 200000 rows in its queue. The recorder dropped a row. The disk is too slow.
`camera_missed`	A frame of the game came later than one camera period. The recorder did not take the camera samples in between.
`camera_busy`	A camera image was due while the earlier images were not complete.
`camera_encode_backlog`	Four encode tasks were in progress. The recorder dropped the image.
`lidar_busy`	A LiDAR scan was due while the earlier scans were not complete.

A session in real time has drops when the frame rate of the game is low. In this run the recorder wrote 594 of 600 camera images and 597 of 601 LiDAR scans. A session in lockstep has no drops, because each step waits for the sensors. Refer to Lockstep Stepping.

The Sensor Profile Label#

The key sensor_profile of episode.json tells which sensor settings and render settings made the data.

Label	Meaning
`tractor-default`	The default sensor rig of the Maxxum. No calibration against a real sensor exists for its values.
`polaris-calibrated`	The sensor rig of the Polaris with the calibrated sensor profile.
A label with the suffix `-reduced-6gb`	The low render tier recorded the data with reduced render settings.
`custom`	An option or a menu value changed the camera or the LiDAR, or the console changed the render settings.

Note

The render tier changes only the main view. A recording camera uses the sensor profile, not the render tier. A GPU with less than 11.5 GiB gets the low tier and the label suffix -reduced-6gb. The key sensor_profile_detail gives the tier, the GPU memory and the render settings. Do not mix episodes with different labels in one dataset. Platforms and GPU Tiers gives the details.

Read the Episode Log#

The episode log is one MCAP file with ROS 2 messages. It has the states of all agents, but no sensor data.

Write this program into the file mcap_summary.py.

import sys

from mcap.reader import make_reader

with open(sys.argv[1], "rb") as f:
    summary = make_reader(f).get_summary()
stats = summary.statistics
print("duration", round((stats.message_end_time - stats.message_start_time) / 1e9, 3), "s")
for channel_id, channel in sorted(summary.channels.items()):
    schema = summary.schemas[channel.schema_id].name
    print(channel.topic, schema, stats.channel_message_counts.get(channel_id, 0))

Run the program on the episode log.

python mcap_summary.py out/maxxum-plow/episode.mcap

Expected Result

duration 60.025 s
/sim/episode acres_interfaces/msg/Episode 1
/sim/agents acres_interfaces/msg/Agents 1
/sim/agent_states acres_interfaces/msg/AgentStates 7203
/sim/farm_events acres_interfaces/msg/FarmEvents 990
/sim/farm_stamps acres_interfaces/msg/FarmStamps 7193
/sim/conditions acres_interfaces/msg/Conditions 61
/sim/shifts acres_interfaces/msg/VehicleShifts 1
/sim/task acres_interfaces/msg/TaskStatus 0

The file of this run has a size of 12.3 MB for 60 s with one agent. Episode Log describes the topics and the messages.

Start and Stop the Episode Log during a Session#

The simulator control channel can start and stop the episode log at any time.

Start a session with the simulator control channel.

Packaged/Linux/Acres.sh -VehicleDemo -RenderOffscreen -SimControl=5600 \
  -SessionLog -VehicleOutput="$PWD/out/control"

Send the requests from Python in a second terminal.

import sys
import time

sys.path.insert(0, "Tools/SimControl")
from sim_control import SimControl

ctl = SimControl(5600)
print(ctl.call("record", action="start", path="/home/user/ACRES/out/control/part-1.mcap"))
time.sleep(30)
print(ctl.call("record", action="stop"))
print(ctl.call("set_state", state=3))

Expected Result

The last request stops the game. The game closes all logs.

{'path': '/home/user/ACRES/out/control/part-1.mcap', 'messages': 4, 'id': 1, 'ok': True, 'result': 1}
{'messages': 7241, 'duration_s': 30.075, 'path': '/home/user/ACRES/out/control/part-1.mcap', 'id': 2, 'ok': True, 'result': 1}
{'state': 3, 'id': 3, 'ok': True, 'result': 1}

Without the key path, the game writes the file episode-NNNN.mcap into the session folder, for example episode-0000.mcap. Simulator Control Channel describes the request. The ROS 2 bridge gives the same function as a service. Refer to Services and Actions.

Record the Polaris#

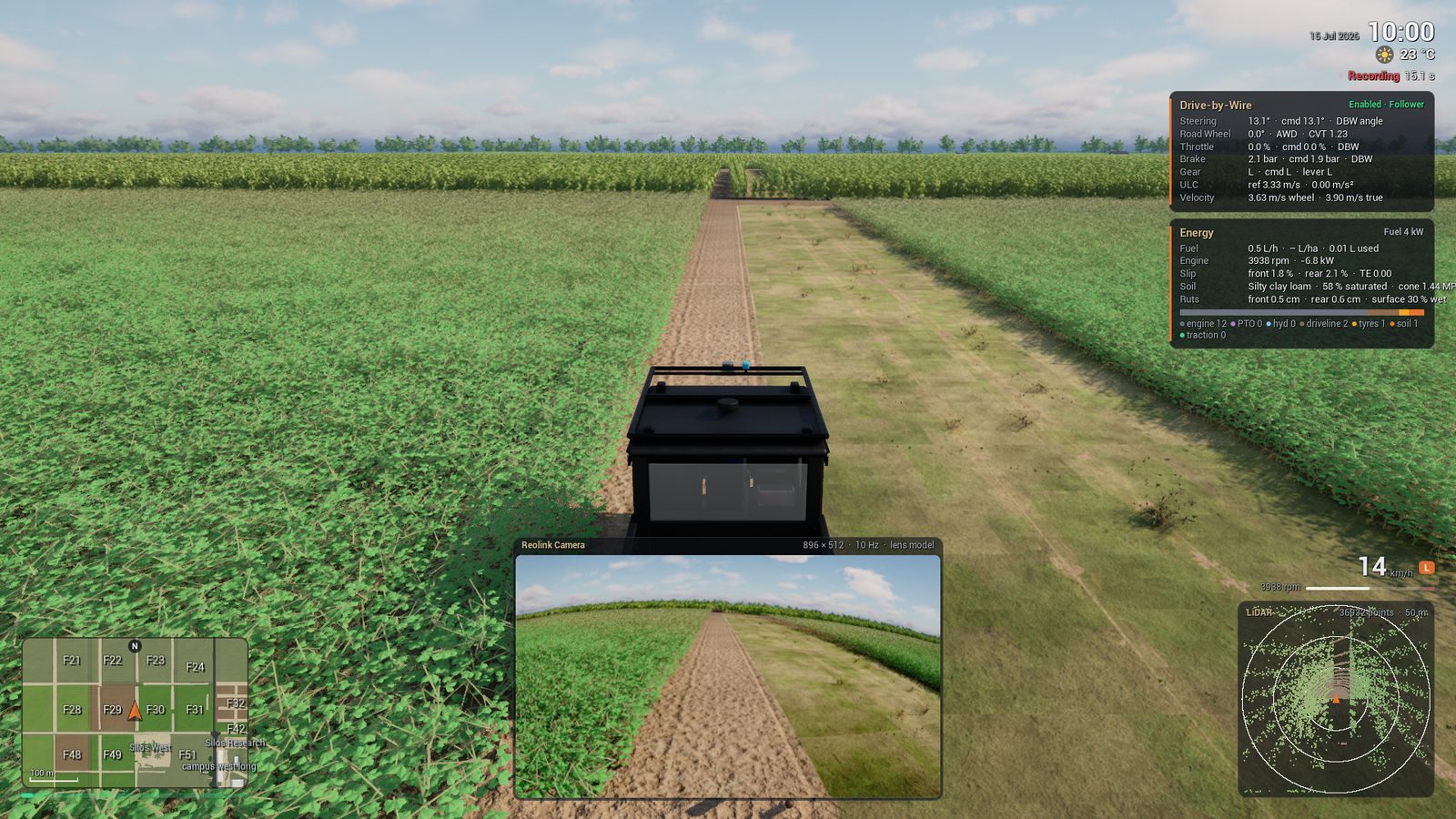

The Polaris records the sensor rig of the real vehicle: a LiDAR with 32 rings, the camera and an INS. This session drives the Polaris 75 m along the grass lane at the east edge of field F29.

Write the drive script into the file lane.json.

{
  "frame": "world",
  "path": [[100.6, -45], [100.6, -80], [100.6, -135]],
  "keys": [
    {"t": 0, "speed_kmh": 0},
    {"t": 3, "speed_kmh": 12},
    {"t": 26, "speed_kmh": 0},
    {"t": 30, "exit": true}
  ]
}

Start the session.

Packaged/Linux/Acres.sh -VehicleDemo -RenderOffscreen -Vehicle=polaris \
  -VehicleSpawnU=566 -VehicleSpawnV=470.5 -VehicleSpawnYaw=-90 -DriveScript="$PWD/lane.json" \
  -EnvHour=10 -SessionLog -SensorRecord -VehicleOutput="$PWD/out/polaris"

Expected Result

ACRES_SENSOR_PROFILE profile=polaris validated=1 changes=none
ACRES_SENSOR_START episode=/home/user/ACRES/out/polaris/sensors/episode-001 camera=1 lidar=32x1800 gpu_lidar=1 ...
ACRES_DRIVE_SCRIPT_DONE t=30.00
ACRES_SENSOR_STOP episode=/home/user/ACRES/out/polaris/sensors/episode-001 truth=3603 imu=3601 gnss=301 lidar=300 camera=299 can=0 ins=3002 lidar_points=11112340 dropped_rows=0 camera_missed=1 camera_busy=0 lidar_busy=1 errors=0

List the session folder.

ls out/polaris out/polaris/sensors/episode-001

Expected Result

out/polaris:
dbw.csv           farm-field.bin   farm-visuals.json  farm-weather.csv      theta.f32
farm-config.json  farm-fields.csv  farm-water.bin     sensors               tractor.csv
farm-events.csv   farm-state.json  farm-water.json    session-summary.json  water-depth.f32

out/polaris/sensors/episode-001:
actions.jsonl  camera.jsonl  episode.json  imu.jsonl  lidar        sensors-config.json
camera         can.jsonl     gnss.jsonl    ins.jsonl  lidar.jsonl  truth.jsonl

The recording of the Polaris is different from the recording of the Maxxum in these items.

Item	Maxxum	Polaris
LiDAR	8 rings x 180 columns. One PLY file with the returns of each scan.	32 rings x 1800 columns. One organized PCD file with 57600 points for each scan.
LiDAR size	35 KB for each scan	0.9 MB for each scan
Camera	896 x 512 pixels, 10 Hz, field of view 90 degrees	896 x 512 pixels, 10 Hz, field of view 73.5 degrees, with the lens of the real camera
INS	No file	`ins.jsonl` at 100 Hz: fix, IMU, velocity and UTM odometry
CAN	`can.jsonl` at 20 Hz	No frames
Drive-by-wire	No file	`dbw.csv` at 50 Hz in the session folder
Label `sensor_profile`	`tractor-default`	`polaris-calibrated`

The session folder of this run uses 600 MB: 293 MB for 299 images and 269 MB for 300 scans. The file Acres/Content/Simulation/sensors_polaris.json contains the sensor rig of the Polaris.

The HUD of the Polaris during a recording

Record Two Vehicles in One Session#

The options -SessionLog and -SensorRecord apply to all agents of a session. Each agent writes into its own folder in the session folder.

Write the file two.json. It holds the Maxxum and ends the session after 24 s.

{"keys": [{"t": 0, "speed_kmh": 0, "steer": 0}, {"t": 24, "exit": true}]}

Start the session with the two vehicles.

Packaged/Linux/Acres.sh -VehicleDemo -RenderOffscreen -Vehicles=maxxum,polaris \
  -RlPorts=5555,5556 -SensorStreams=5601,5602 -SimControl=5600 \
  -SensorRecord -SessionLog -VehicleOutput="$PWD/out/two" -DriveScript="$PWD/two.json"

Expected Result

ACRES_DRIVE_SCRIPT_DONE t=24.00
ACRES_SENSOR_STOP episode=/home/user/ACRES/out/two/maxxum/sensors/episode-001 truth=2892 imu=2890 gnss=241 lidar=70 camera=134 can=964 ins=2410 lidar_points=82672 dropped_rows=0 camera_missed=105 camera_busy=0 lidar_busy=171 errors=1
ACRES_SENSOR_STOP episode=/home/user/ACRES/out/two/polaris/sensors/episode-001 truth=2892 imu=2890 gnss=241 lidar=72 camera=134 can=0 ins=2410 lidar_points=3030056 dropped_rows=0 camera_missed=105 camera_busy=0 lidar_busy=169 errors=2

List the folders of the agents.

ls out/two/maxxum out/two/polaris

Expected Result

out/two/maxxum:
sensors  session-summary.json  tractor.csv

out/two/polaris:
dbw.csv  sensors  session-summary.json  tractor.csv

CAUTION

This run lost 44 % of the camera images and 71 % of the LiDAR scans. Two cameras and two LiDAR sensors made the game slow: 5 frames for each second on the test workstation. The counters camera_missed and lidar_busy show the loss. A dataset with such counters is not complete.

Use one of these methods to prevent the loss.

Method	Procedure
Record one camera only	Give one agent a sensor overlay that sets its camera off. Refer to Run Several Vehicles.
Decrease the rates	Use `-SensorCameraHz=` and `-SensorLidarHz=`.
Record in lockstep	Each step waits for the sensors. Refer to Lockstep Stepping.
Render later	Record an episode log first. Refer to Render Later.

A vehicle with a sensor stream also writes the file ins.jsonl, because the stream needs the INS. An episode log of this session contains the two agents in one file. Run Several Vehicles describes the agents file, the ports and the worked example with the Maxxum at field work and the Polaris on the lanes.

Record without a Driver#

A recording session must run without a person at the keyboard. Three drivers can do this.

Driver	Option	Use
Drive script	`-DriveScript=`	Timed controls, a path, implement controls and the end of the session.
Replay	`-ReplayFile=`, `-ReplayMode=`	Drives a logged session or a command file again. Refer to Replay.
Bridge client	`-RlPort=`	A program or the ROS 2 bridge sends commands. Refer to Vehicle Bridge.

A drive script is a JSON file with a list keys. Each key has a time t in seconds of physics time. A value stays active until a later key sets it again.

Key	Unit	Function
`speed_kmh`	km/h	The speed that the script holds with the throttle and the brake.
`gear`		The gear of the Maxxum, from 1.
`steer`	deg	A fixed steering angle, positive to the left. Without this key the script follows the path.
`raise`		`true` lifts the implement. `false` puts it into the soil.
`hitch_mode`		`position`, `draft` or `float`.
`draft_setpoint_kn`	kN	The draft that the hitch control holds in the mode `draft`.
`pto`		`true` starts the PTO.
`camera`	deg, deg, m	The view: yaw, pitch and distance of the chase camera.
`exit`		`true` ends the session. The game closes all logs.

The list path gives the points of the path in metres. With "frame": "world" the points are world coordinates: x to the east, y to the south. Without it the points are relative to the start pose: x forward, y to the left.

Record the Same Drive Again with a Replay#

A replay drives a logged session again. Use it to record the same drive with different sensors or weather. A replay does not stop the game at its end. A drive script with only the key exit stops the session.

Write the file exit.json.
```
{"keys": [{"t": 25, "exit": true}]}
```

Replay the session of First Recorded Dataset as a path replay, with the camera only.

Packaged/Linux/Acres.sh -VehicleDemo -RenderOffscreen \
  -ReplayFile="$PWD/out/first-dataset" -ReplayMode=path -DriveScript="$PWD/exit.json" \
  -SensorRecord -SensorNoLidar -SessionLog -VehicleOutput="$PWD/out/replay-dataset"

Expected Result

ACRES_REPLAY_READY rows=401 duration=20.0 s path=1 mode=path source=/home/user/ACRES/out/first-dataset/tractor.csv
ACRES_DRIVE_SCRIPT_DONE t=25.00
ACRES_SENSOR_STOP episode=/home/user/ACRES/out/replay-dataset/sensors/episode-001 truth=3001 imu=2999 gnss=251 lidar=0 camera=249 can=1002 ...

Read the tracking result of the replay.

python -m json.tool out/replay-dataset/replay-summary.json

Expected Result

{
    "source": "/home/user/ACRES/out/first-dataset/tractor.csv",
    "mode": "path",
    "reference_duration_s": 20.0,
    "path_available": true,
    "rms_cross_track_m": 0.0005,
    "max_cross_track_m": 0.0007,
    "completed": true,
    "vehicle": "maxxum_150",
    "shift_east_north_m": [
        0.0,
        0.0
    ]
}

The vehicle starts on the first logged pose and follows the logged path. In this run the path error was below 1 mm. Replay describes the replay modes and the format of a command file.

CAUTION

End a recording session with the key exit of a drive script, with End Simulation or with one Ctrl+C. A second interrupt signal stops the game immediately. The game then does not write session-summary.json, and episode.json keeps the state recording with counts of zero.

Record a ROS 2 Bag#

A bag records the topics that the ROS 2 bridge publishes. The bridge needs the sensor stream of the vehicle.

WARNING

Do all ROS 2 commands in a terminal with the DDS loopback fence (source ROS/Env/setup_env.sh). Do not replay the command topics of a bag (/vehicle/*/cmd, /vehicle/enable) outside the fence. The real vehicle can move.

Start the game with the sensor stream, the vehicle bridge and the simulator control channel of the Polaris.

Packaged/Linux/Acres.sh -VehicleDemo -RenderOffscreen -Vehicle=polaris \
  -SensorStream=5601 -RlPort=5556 -SimControl=5600

Start the ROS 2 bridge in a second terminal.

source ROS/Env/setup_env.sh
ros2 launch acres_sim sim_bridge.launch.py

Record the topics in a third terminal for 22 s. The option -s mcap selects the MCAP format.

source ROS/Env/setup_env.sh
timeout -s INT 22 ros2 bag record -s mcap -o out/bag /clock /tf /tf_static /vehicle/odom /oxts/fix \
  /oxts/imu /lidar/points /camera/image_raw /camera/camera_info /vehicle/steering/report

Examine the bag.

ros2 bag info out/bag

Expected Result

Files:             bag_0.mcap
Bag size:          483.6 MiB
Storage id:        mcap
Duration:          21.846872511s
Messages:          13131
Topic information: Topic: /camera/camera_info | Type: sensor_msgs/msg/CameraInfo | Count: 218 | Serialization Format: cdr
                   Topic: /camera/image_raw | Type: sensor_msgs/msg/Image | Count: 219 | Serialization Format: cdr
                   Topic: /clock | Type: rosgraph_msgs/msg/Clock | Count: 2626 | Serialization Format: cdr
                   Topic: /tf | Type: tf2_msgs/msg/TFMessage | Count: 2188 | Serialization Format: cdr
                   Topic: /lidar/points | Type: sensor_msgs/msg/PointCloud2 | Count: 219 | Serialization Format: cdr
                   Topic: /oxts/fix | Type: sensor_msgs/msg/NavSatFix | Count: 2188 | Serialization Format: cdr
                   Topic: /oxts/imu | Type: sensor_msgs/msg/Imu | Count: 2188 | Serialization Format: cdr
                   Topic: /tf_static | Type: tf2_msgs/msg/TFMessage | Count: 2 | Serialization Format: cdr
                   Topic: /vehicle/odom | Type: nav_msgs/msg/Odometry | Count: 2188 | Serialization Format: cdr
                   Topic: /vehicle/steering/report | Type: ds_dbw_msgs/msg/SteeringReport | Count: 1095 | Serialization Format: cdr

Stop the bridge and the game with Ctrl+C.

A bag has no compression for the camera images and the LiDAR clouds. The bag of this run uses 22 MB for each second. Topics lists all topics of the bridge. First ROS 2 Session gives the full procedure for the bridge.

Render Later#

The camera and the LiDAR make a session slow. Render-later divides the work into two steps. The first step records only an episode log. The second step replays the episode log in the game and records the sensors.

Record an episode log without sensors. Use one of these methods.

Method Page

The game in real time with -EpisodeLog= This page

The game in lockstep Lockstep Stepping

ACRES Core, without the game Headless Core Runs

Replay the episode log with the sensor recorder. This example uses the log of 30 s from the section above.

Packaged/Linux/Acres.sh -VehicleDemo -RenderOffscreen \
  -EpisodeReplay="$PWD/out/control/part-1.mcap" -EpisodeReplayExit \
  -SensorRecord -VehicleOutput="$PWD/out/render-later"

Expected Result

The game stops when the replay ends. The log contains these lines.

ACRES_REPLAY_LOADED /home/user/ACRES/out/control/part-1.mcap states=3602 agents=1 farm_events=0 farm_stamps=3602 duration_s=30.01
ACRES_REPLAY_DONE steps=3602
ACRES_SENSOR_STOP episode=/home/user/ACRES/out/render-later/sensors/episode-001 truth=3602 imu=3600 gnss=301 lidar=301 camera=299 can=1202 ins=0 lidar_points=376919 dropped_rows=0 camera_missed=1 camera_busy=0 lidar_busy=0 errors=0

List the new sensor episode.

ls out/render-later/sensors/episode-001

Expected Result

actions.jsonl  camera.jsonl  episode.json  imu.jsonl  lidar.jsonl          truth.jsonl
camera         can.jsonl     gnss.jsonl    lidar      sensors-config.json

The episode replay takes the agents from the log: the vehicle, the name, the implement and the first pose. The vehicles follow the logged states. The game does not simulate the vehicle physics again. The replay starts with the date, the time and the weather of the log.

Note

An episode replay in real time can drop camera images, as each session in real time can. Replay and Lockstep Stepping show how to replay step by step without drops.

Next Steps#

Replay: command replay, path replay and episode replay.
Lockstep Stepping: recordings without drops.
Headless Core Runs: episode logs without the game.
Run Several Vehicles: the agents file and the ports of each agent.
File formats: Session Log, Episode Log, Sensor Stream and Topics.

Method	Page
The game in real time with `-EpisodeLog=`	This page
The game in lockstep	Lockstep Stepping
ACRES Core, without the game	Headless Core Runs
